Industrial filtration is an essential process across a wide range of sectors, from chemical manufacturing to food and beverage production. Maintaining liquid purity, protecting downstream equipment, and ensuring operational efficiency are top priorities. The Stainless Steel Dome-Top Bag Filter Housing for Industrial Filtration provides a reliable, durable, and high-performance solution for these critical needs.

Unlike simple cartridge or bag filters, this dome-top design combines robust stainless steel construction with high-capacity filtration, making it suitable for handling large volumes of liquid while withstanding the demands of industrial environments. With its superior sealing, easy maintenance, and flexible design, this filter housing is widely recognized as a cornerstone in modern industrial filtration systems.

This comprehensive guide will cover all aspects of the Dome-Top Bag Filter Housing, including specifications, materials, construction, applications, installation, maintenance, and customer feedback, giving industrial buyers and engineers a clear understanding of its capabilities.

Product Overview

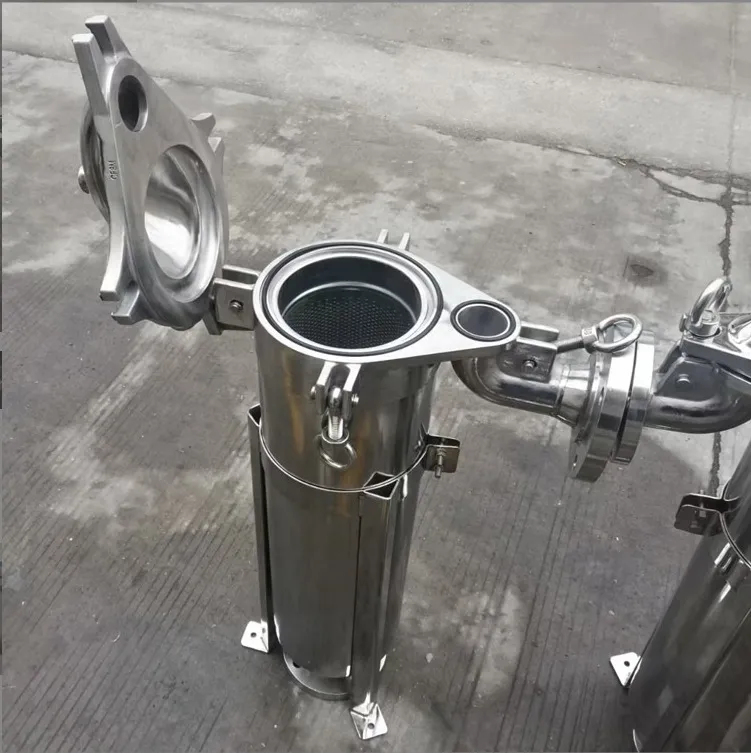

The Stainless Steel Dome-Top Bag Filter Housing is engineered for high-performance liquid filtration in demanding industrial environments. Its dome-top structure allows for:

• High flow rates with minimal pressure drop.

• Ease of bag replacement thanks to the top-opening design.

• Durable construction that withstands chemical corrosion, high temperatures, and pressure variations.

• Versatile applications across water treatment, chemical processing, petrochemical, pharmaceutical, and food industries.

The housing can accommodate multiple bag sizes and types, providing flexibility for different filtration requirements, whether it’s coarse sediment removal or fine filtration of liquids.

Technical Specifications

While specifications can vary by model and manufacturer, a typical Dome-Top Bag Filter Housing includes:

• Material: 304 or 316L stainless steel

• Inlet/Outlet Connection: Flanged, threaded, or tri-clamp options

• Max Operating Pressure: 10 bar (145 psi)

• Max Operating Temperature: 180°C (356°F) for 304 SS, higher for 316L

• Bag Size Compatibility: #1, #2, #3, or custom sizes

• Filtration Area: 0.5 – 5 m² depending on model

• Closure: Dome-top with clamp or bolt ring for quick access

• Sealing Material: EPDM, Viton, or PTFE gaskets for chemical resistance

• Optional Features: Pressure gauges, vent valves, support baskets

These specifications make it clear that the housing can handle high-capacity industrial filtration needs while remaining durable and adaptable.

Material and Construction

The Stainless Steel Industrial Filter Housing is constructed from high-quality 304 or 316L stainless steel, chosen for:

• Corrosion Resistance: Able to withstand acids, alkalis, and solvents.

• Mechanical Strength: Maintains integrity under high pressure and flow.

• Longevity: Resists wear, abrasion, and deformation over time.

The dome-top design provides several advantages:

• Simplifies bag replacement without disassembling the entire housing.

• Ensures uniform pressure distribution during operation.

• Reduces the risk of leakage due to superior sealing.

Additional components, such as internal support baskets, help maintain the bag shape during filtration and prevent collapse under high flow conditions.

Key Features and Advantages

The Dome-Top Bag Filter Housing offers several notable features:

1. High Flow Capacity
   Accommodates large volumes of liquids, making it suitable for industrial plants with high throughput requirements.

2. Durability and Corrosion Resistance
   Stainless steel construction ensures longevity, even in aggressive chemical environments.

3. Ease of Maintenance
   Dome-top design allows for quick bag removal and replacement without special tools.

4. Versatile Filtration
   Compatible with various bag materials and micron ratings to meet different filtration needs.

5. Pressure and Temperature Tolerance
   Can handle high operating pressures and elevated temperatures for demanding processes.

6. Customizable Options
   Optional gauges, vents, and clamps make it adaptable to specific industrial setups.

7. Leak-Proof Sealing
   High-quality gaskets prevent leakage, ensuring safe and efficient operation.

Applications

The High-Capacity Liquid Filtration System finds use in multiple industries:

Water Treatment

• Pre-filtration for reverse osmosis systems

• Removal of suspended solids, rust, and sediment

• Industrial cooling and boiler feedwater filtration

Chemical Industry

• Filtration of acids, alkalis, and solvents

• Protecting pumps, valves, and downstream equipment

• Ensures chemical product purity

Food and Beverage

• Juice, wine, beer, and sauce clarification

• Removal of particulate matter to meet sanitary standards

• Compatible with food-grade gaskets and materials

Pharmaceutical and Biotechnology

• Sterile filtration for process water and chemical solutions

• Protects critical equipment from contamination

• Meets GMP and FDA requirements for sanitary design

Petrochemical and Oil Industry

• Filtration of fuel, oil, and lubricants

• Prevents damage to sensitive machinery

• Ensures product consistency and safety

Industrial Manufacturing

• Pre-filtration for paints, coatings, adhesives

• High-volume liquid filtration in chemical processing plants

• Reduces downtime and maintenance costs

Production Process

Manufacturing a Stainless Steel Dome-Top Bag Filter Housing involves several steps:

1. Material Selection
   High-quality stainless steel plates or sheets are selected based on corrosion resistance and strength requirements.

2. Forming and Welding
   The dome top and cylindrical body are formed and welded using precision techniques to ensure leak-free performance.

3. Surface Treatment
   Polishing or sandblasting improves corrosion resistance and hygiene.

4. Assembly
   Support baskets, inlet/outlet connections, clamps, and gaskets are installed.

5. Pressure Testing
   Each housing undergoes rigorous testing for pressure tolerance and leak-proof performance.

6. Final Inspection
   Ensures compliance with industrial standards and customer specifications.

Installation and Operation

Installation Steps

1. Select Site – Ensure the system is placed in an accessible area for maintenance.

2. Connect Inlet and Outlet – Use compatible flange, threaded, or tri-clamp fittings.

3. Secure the Dome – Fasten with clamps or bolts according to manufacturer specifications.

4. Add Filter Bag – Insert the bag inside the support basket and ensure proper seating.

5. Check Seals – Verify gaskets are properly positioned to prevent leaks.

Operation Tips

• Monitor inlet and outlet pressure to detect clogging.

• Backwash or replace filter bags regularly based on usage.

• For high-temperature fluids, allow gradual heat ramp-up to avoid thermal shock.

Maintenance Guidelines

Proper maintenance ensures long-term performance:

• Bag Replacement – Frequency depends on liquid quality and flow volume; typically every 1–3 months.

• Gasket Inspection – Replace gaskets if wear or deformation is observed.

• Pressure Monitoring – Use gauges to detect excessive pressure drop, indicating clogged bags.

• Cleaning Housing – Periodically clean the interior to remove sediment or chemical deposits.

• Sanitization – For food and beverage or pharmaceutical applications, use approved cleaning agents.

Customer Feedback and Case Studies

Industrial Plant Example

A chemical manufacturer adopted Stainless Steel Dome-Top Bag Filter Housing for their acid filtration line. Results included:

• Improved equipment protection, reducing pump and valve failures.

• Longer filter bag lifespan due to stable flow distribution.

• Reduced downtime and maintenance costs.

Beverage Industry Example

A juice production company switched to dome-top bag housings for sediment removal. Results included:

• Enhanced product clarity and consistency.

• Faster bag replacement and easier cleaning.

• Compliance with food safety standards.

Water Treatment Plant Example

A municipal water facility implemented high-capacity dome-top housings for pre-filtration before reverse osmosis. Results included:

• Reduced RO membrane fouling.

• Increased overall system efficiency.

• Lower operational costs and maintenance frequency.

Advantages Over Competing Products

• Compared to Cartridge Filters – Higher flow capacity and easier maintenance.

• Compared to Bottom-Top Bag Housings – Dome-top design allows safer, faster bag replacement.

• Compared to Plastic Housings – Stainless steel provides superior durability, chemical resistance, and temperature tolerance.

Environmental and Economic Benefits

• Sustainable Operation – Reusable filter bags reduce waste.

• Cost-Effective – Long-lasting housing lowers replacement and maintenance costs.

• Reliable Performance – Ensures consistent filtration quality, reducing losses due to contaminated liquids.

• Eco-Friendly Materials – Stainless steel is recyclable and compatible with green manufacturing practices.

Conclusion

The Stainless Steel Dome-Top Bag Filter Housing for Industrial Filtration is an essential solution for industries requiring high-capacity, durable, and reliable liquid filtration. With its robust stainless steel construction, dome-top design for easy maintenance, compatibility with multiple bag types, and wide-ranging industrial applications, it delivers superior performance and operational efficiency.

Whether you are managing a chemical plant, beverage factory, municipal water facility, or pharmaceutical line, this housing system ensures:

• Optimal filtration efficiency

• Reduced operational downtime

• Longevity and durability

• Environmental sustainability

Investing in a Dome-Top Bag Filter Housing is not just a filtration choice—it is a commitment to consistent quality, operational safety, and cost savings.
