In industrial and commercial operations, effective liquid filtration is essential to ensure product quality, equipment longevity, and operational efficiency. The High-Capacity Dome-Top Liquid Filtration Bag Housing is a premium solution designed for high-volume liquid filtration, offering superior durability, ease of maintenance, and versatile application across multiple industries.

Unlike conventional filtration systems, this dome-top design allows for quick bag replacement, reduces downtime, and supports large-scale operations. Built with robust stainless steel, it ensures reliability even in demanding chemical, pharmaceutical, or food processing environments.

This article provides a detailed overview of the High-Capacity Dome-Top Liquid Filtration Bag Housing, covering its specifications, material composition, unique features, manufacturing process, installation guidelines, usage scenarios, and real-world customer feedback. The information is aimed at engineers, procurement managers, and industrial buyers seeking a dependable filtration solution.

Product Overview

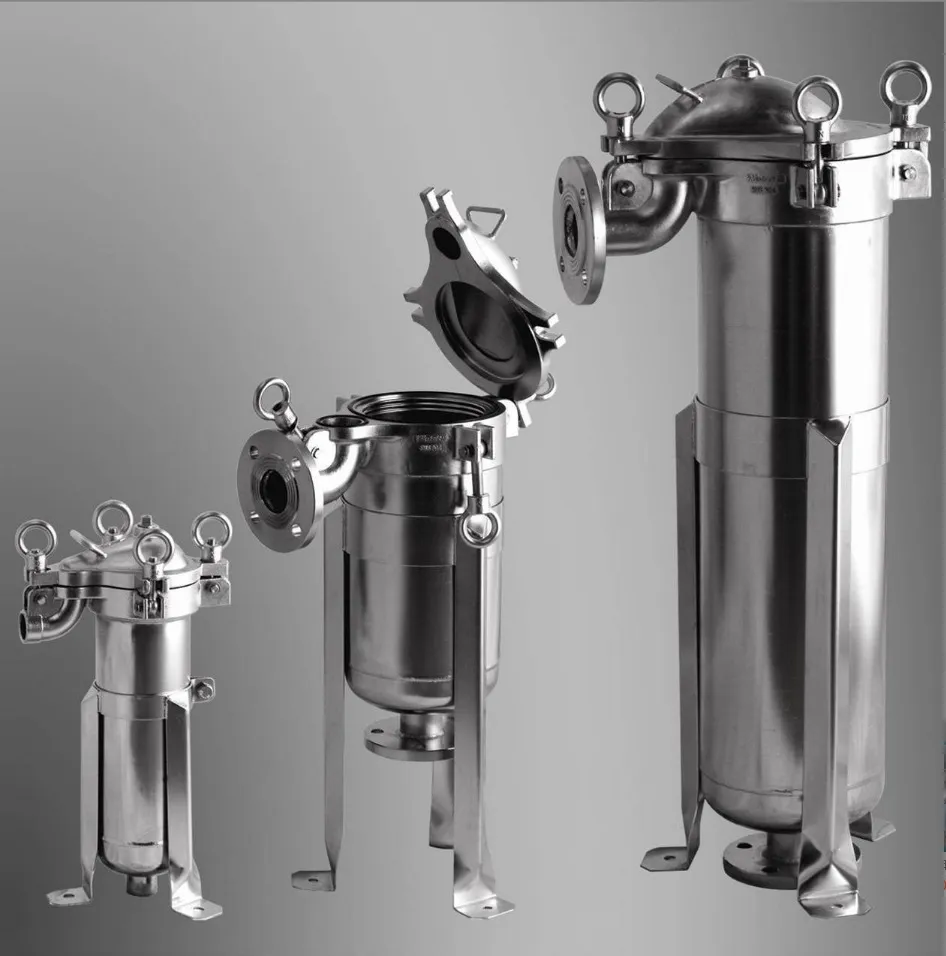

The High-Capacity Dome-Top Liquid Filtration Bag Housing is engineered to handle large volumes of liquids while maintaining consistent filtration performance. Key highlights include:

• Dome-top design for easy access and bag replacement.

• High-capacity filtration suitable for industrial-scale operations.

• Robust stainless steel construction resistant to chemical corrosion and mechanical wear.

• Flexible compatibility with different bag sizes, micron ratings, and flow rates.

Its modular design allows integration into existing filtration systems or standalone applications, making it a versatile solution for industries ranging from chemical processing to water treatment.

Technical Specifications

The system is designed to meet industrial requirements while providing customization options. Typical specifications include:

• Material: 304 or 316L stainless steel

• Inlet/Outlet Connection: Flanged, threaded, or tri-clamp options

• Maximum Operating Pressure: 10 bar (145 psi)

• Maximum Operating Temperature: 180°C (356°F) for 304 SS; higher for 316L

• Bag Compatibility: Standard #1, #2, #3 sizes or customized bags

• Filtration Area: 0.5 – 6 m² depending on model

• Closure Type: Dome-top with clamp or bolt ring

• Sealing Materials: EPDM, Viton, or PTFE for chemical resistance

• Optional Features: Pressure gauges, vent valves, flow indicators

These specifications ensure high efficiency, safety, and adaptability to various industrial processes.

Material and Construction

The Industrial Stainless Steel Filter Housing is constructed using premium-grade materials to guarantee durability and longevity:

• Housing Material: 304 or 316L stainless steel offers resistance to chemical corrosion, mechanical stress, and high temperatures.

• Internal Support Basket: Prevents bag collapse under high flow, ensuring consistent filtration.

• Sealing Components: Food-grade silicone, EPDM, or Viton gaskets ensure leak-proof operation.

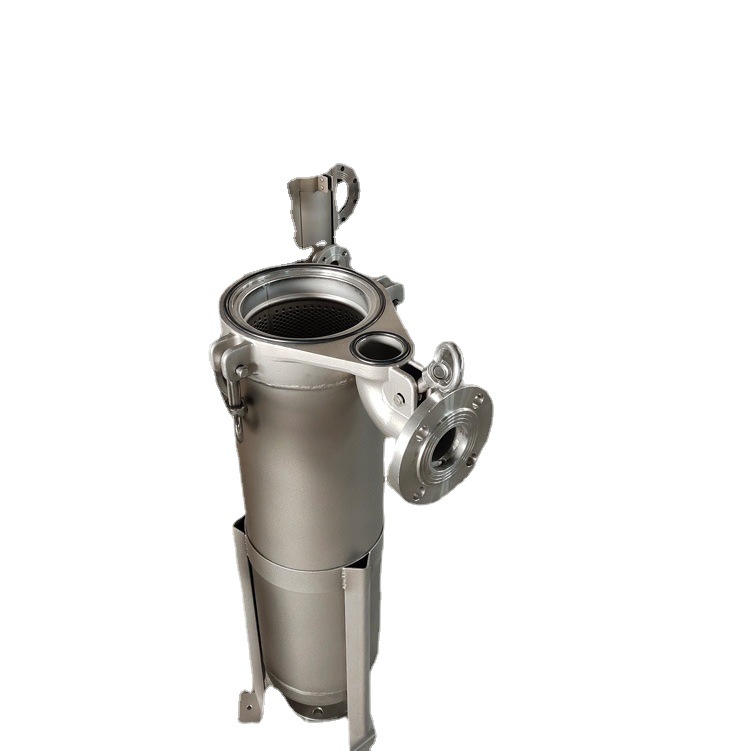

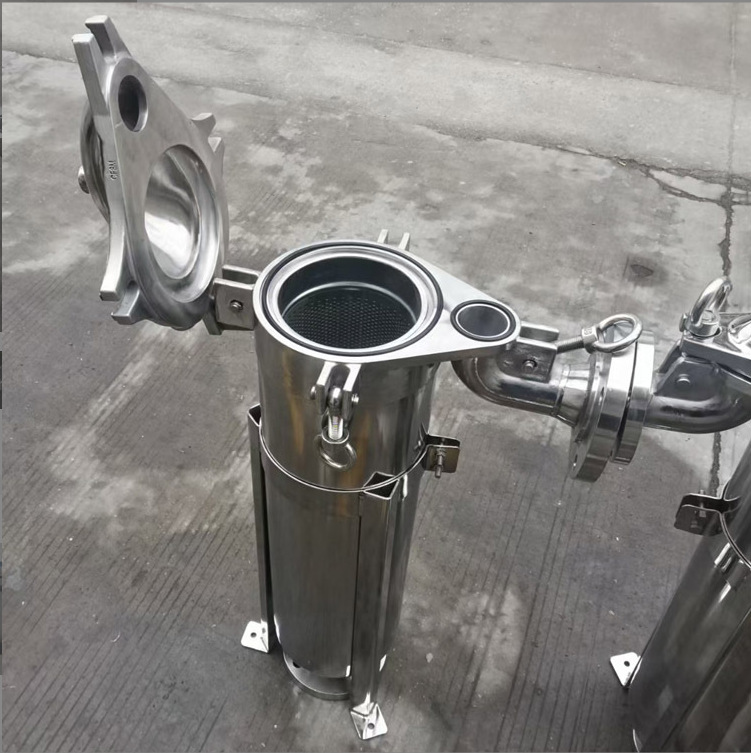

• Dome-Top Design: Provides uniform pressure distribution and simplifies bag replacement without tools.

The combination of robust materials and thoughtful design guarantees a Heavy-Duty Liquid Filtration System that performs reliably under demanding conditions.

Key Features and Benefits

The High-Capacity Dome-Top Liquid Filtration Bag Housing provides several unique advantages:

1. High Flow Capacity
   Handles large volumes of liquid efficiently, suitable for industrial-scale applications.

2. Ease of Maintenance
   Dome-top design allows for quick and safe bag changes without dismantling the system.

3. Durable Construction
   Stainless steel housing ensures long service life and resistance to corrosion and chemical attack.

4. Versatility
   Compatible with various bag sizes and micron ratings, offering flexibility for different filtration requirements.

5. Leak-Proof Operation
   Precision-engineered gaskets and closure mechanisms prevent leakage and ensure consistent performance.

6. Pressure and Temperature Tolerance
   Supports high-pressure and high-temperature applications, making it ideal for chemical and industrial processes.

7. Customizable Options
   Additional features such as pressure gauges, vent valves, and flow indicators can be included to meet specific operational needs.

Applications

The Heavy-Duty Liquid Filtration System is widely applicable across multiple sectors:

Water Treatment

• Pre-filtration before reverse osmosis systems

• Removal of rust, sand, and sediment from municipal or industrial water

• Cooling tower and boiler feedwater filtration

Chemical Industry

• Filtration of acids, alkalis, and solvents

• Protecting pumps, valves, and downstream equipment

• Ensures chemical product purity and consistency

Food and Beverage

• Juice, beer, wine, and dairy filtration

• Removal of particulate matter to meet hygienic standards

• Food-grade gaskets prevent contamination

Pharmaceutical and Biotechnology

• Sterile filtration for process water and solutions

• Protects sensitive equipment and ensures compliance with GMP/FDA standards

Petrochemical and Oil Industry

• Filtration of fuels, oils, and lubricants

• Protects sensitive machinery and maintains product consistency

Industrial Manufacturing

• Pre-filtration for paints, coatings, adhesives

• Filtration of large volumes in chemical or manufacturing plants

• Reduces downtime and maintenance requirements

Production Process

The manufacturing of a High-Capacity Dome-Top Liquid Filtration Bag Housing involves several critical steps:

1. Material Selection
   Premium stainless steel sheets or plates are chosen for corrosion resistance and durability.

2. Forming and Welding
   The dome-top and cylindrical body are precision-formed and welded for strength and leak-proof integrity.

3. Surface Treatment
   Polishing or sandblasting improves corrosion resistance, cleanliness, and hygiene.

4. Assembly
   Internal support baskets, gaskets, and inlet/outlet connections are installed.

5. Pressure and Leak Testing
   Each housing is tested to ensure it withstands the specified operating pressures and temperatures.

6. Quality Control
   Finished products are inspected for compliance with industrial standards and customer specifications.

Installation and Operation

Installation Steps

1. Select Installation Site – Ensure easy access for maintenance and bag replacement.

2. Connect Inlet and Outlet – Flanged, threaded, or tri-clamp fittings.

3. Secure Dome Top – Fasten clamps or bolt ring according to manufacturer instructions.

4. Insert Filter Bag – Place the bag inside the support basket and check proper seating.

5. Check Seals and Gaskets – Ensure leak-proof operation.

Operational Tips

• Monitor inlet and outlet pressure to detect clogging.

• Replace filter bags at regular intervals to maintain performance.

• Avoid sudden temperature or pressure changes to prevent damage.

Maintenance Guidelines

Proper maintenance extends system life and ensures consistent filtration:

• Filter Bag Replacement – Frequency depends on feed water quality and flow rate; usually every 1–3 months.

• Gasket Inspection – Replace worn or damaged gaskets.

• Cleaning Housing – Periodically clean to remove sediment or chemical residues.

• Pressure Monitoring – Helps detect clogged bags and ensures optimal performance.

• Sanitization – Required for food, beverage, or pharmaceutical applications.

Customer Feedback and Case Studies

Industrial Case Study

A chemical plant installed High-Capacity Dome-Top Bag Filter Housings for acid filtration. Results included:

• Reduced pump and valve failures due to clean feedwater.

• Longer filter bag life with minimal downtime.

• Improved operational efficiency and reduced maintenance costs.

Food and Beverage Example

A juice manufacturer implemented these housings to remove pulp and sediment. Results included:

• Enhanced product clarity and consistency.

• Reduced cleaning time and labor for production lines.

• Compliance with food safety and hygiene standards.

Water Treatment Plant Feedback

A municipal water treatment facility adopted dome-top housings for pre-filtration. Outcomes included:

• Reduced reverse osmosis membrane fouling.

• Improved system efficiency and lower operational costs.

• Reliable high-volume filtration for daily water supply.

Advantages Over Competing Products

• Compared to Standard Cartridge Filters – Supports higher flow and volume capacities.

• Compared to Bottom-Top Bag Housings – Easier bag replacement and safer operation.

• Compared to Plastic Housings – Stainless steel construction provides better durability and chemical resistance.

Environmental and Economic Benefits

• Sustainability – Reusable filter bags reduce waste and disposal costs.

• Cost Savings – Durable stainless steel housing minimizes replacement and maintenance expenses.

• Operational Efficiency – Consistent filtration quality reduces downtime and production losses.

• Eco-Friendly Materials – Stainless steel is recyclable and aligns with green manufacturing practices.

Conclusion

The High-Capacity Dome-Top Liquid Filtration Bag Housing is a reliable, durable, and high-performance solution for industrial liquid filtration. Its stainless steel construction, dome-top design, high-capacity capability, and versatile compatibility make it suitable for a wide range of applications, from chemical and food processing to water treatment and pharmaceuticals.

By choosing this Heavy-Duty Liquid Filtration System, companies can achieve:

• Consistent and efficient filtration

• Reduced maintenance and operational downtime

• Longevity and durability in demanding environments

• Environmental sustainability and cost-effectiveness

Whether for industrial, commercial, or high-volume water treatment applications, this dome-top bag filter housing ensures superior filtration performance and reliable operation.
