Water is one of the most essential resources in human life and industrial activity. However, the water available from natural and municipal sources often contains impurities that can negatively impact health, equipment, and production processes. To ensure safe, clean, and high-quality water, filtration plays a critical role. Among the various water filtration technologies available, UDF carbon block filter cartridges are widely recognized for their effectiveness in removing chlorine, volatile organic compounds (VOCs), bad tastes, odors, and harmful contaminants.
The UDF Carbon Block Filter Cartridge is specifically engineered for high-performance residential, commercial, and industrial water filtration systems. Made from compressed activated carbon, this cartridge provides both adsorptive and mechanical filtration, trapping fine sediments while also adsorbing chemical contaminants. The result is water that is clearer, better tasting, and safer for consumption and use in industrial processes.
This article will provide a comprehensive 5000-word introduction to the UDF carbon block filter cartridge, covering its specifications, design features, benefits, applications, materials, production process, installation guide, maintenance requirements, customer feedback, and SEO insights.
The UDF carbon block filter cartridge comes in multiple sizes and configurations to suit different systems. Below are the typical technical parameters:
Filter Type: UDF (Universal Density Filter) Carbon Block Cartridge
Filter Media: Premium activated carbon powder and granules compressed into block form
Outer Diameter: 2.5” (standard) and 4.5” (Big Blue housing compatible)
Lengths Available: 5”, 10”, 20”, 30”, 40”
Micron Rating: 0.5, 1, 5, 10 microns (options available depending on need)
Maximum Operating Pressure: 125 psi (8.6 bar)
Maximum Operating Temperature: 52°C (125°F)
Flow Rate Capacity: 2 – 10 GPM (varies by size and housing)
End Cap Style: DOE (double open end) or SOE (single open end with O-rings)
Seal Options: EPDM, Silicone, Buna-N, Viton
Service Life: 6,000 to 20,000 gallons depending on water quality and size of cartridge
These specifications can be customized for different system requirements, ensuring versatility across applications.
The cartridge is manufactured with high-quality activated carbon, which has a massive surface area and pore structure. This allows the cartridge to effectively adsorb chlorine, VOCs, pesticides, herbicides, and other organic contaminants.
In addition to adsorption, the carbon block structure provides mechanical filtration, trapping fine sediments, dirt, and rust particles down to 1 micron.
One of the main benefits of UDF carbon block filters is the noticeable improvement in taste, clarity, and odor of drinking water, making them ideal for residential and food-service applications.
Unlike granular carbon filters, the block structure ensures consistent flow rates without channeling, maintaining efficiency even under higher pressure.
Thanks to the dense carbon block construction, the cartridge offers longer filter life compared to traditional granular activated carbon (GAC) filters.
The polypropylene end caps, core, and external netting ensure structural integrity, while all materials are FDA-approved and BPA-free, making them suitable for potable water.
By combining adsorption and sediment filtration in one cartridge, the UDF carbon block reduces the need for multiple filter stages, saving costs on replacement and maintenance.
The UDF carbon block filter cartridge is used across a wide range of industries due to its dual-action filtration properties.
Used in under-sink water filters, countertop units, and whole-house filtration systems to provide safe drinking water free from chlorine and chemical residues.
Essential for breweries, soft drink manufacturers, and bottled water plants, where taste and purity directly affect product quality.
Ensures removal of chemical contaminants in process water to maintain high standards for drug manufacturing.
Hotels, restaurants, and coffee shops use UDF cartridges to improve the quality of beverages and food prepared with filtered water.
Removes chlorine and organic impurities that could damage sensitive electronic components during production.
Pre-filtration of process water before specialized chemical treatments ensures consistent results and equipment protection.
Deployed in public water treatment and office water dispensers to deliver safe and appealing drinking water.
Filter Media: Activated carbon made from coconut shells or coal-based carbon, compressed into a solid block for maximum adsorption.
Outer Shell: Polypropylene housing for durability and chemical resistance.
End Caps: Molded polypropylene with precision fitting to prevent bypass.
Gaskets: Food-grade EPDM or silicone for leak-free sealing.
Protective Netting: Polyethylene mesh to prevent damage during installation.
This robust design ensures that the filter remains intact under pressure while providing consistent water quality.

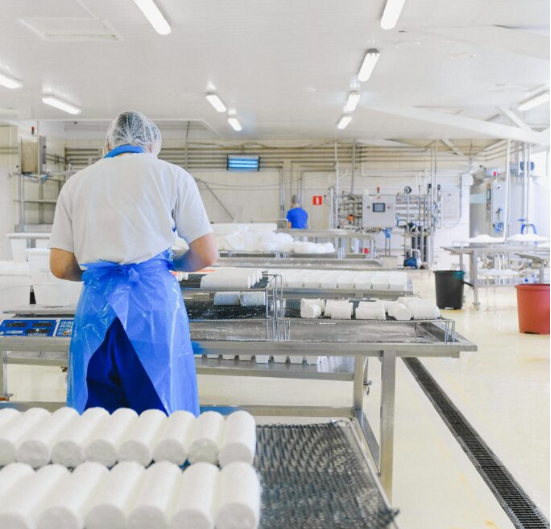

The UDF carbon block filter cartridge undergoes a strict production process to guarantee performance and reliability:
Carbon Selection – Only high-grade activated carbon (coconut shell or coal) is used.
Grinding and Mixing – Carbon is processed into fine powder, then blended with a binder.
Molding – The mixture is compressed into block form under high pressure.
Curing – The blocks are heat-treated to increase hardness and structural integrity.
Machining – Blocks are cut to exact sizes to fit filter housings.
Assembly – End caps, cores, and protective mesh are added.
Testing – Flow rate, pressure resistance, and contaminant removal efficiency are tested.
Packaging – Filters are hygienically sealed in plastic wrap and boxed for shipping.
Turn off water supply and depressurize the filter housing.
Open the housing and remove the old filter cartridge.
Insert the new UDF carbon block filter cartridge into the housing.
Check gasket alignment to ensure no leaks.
Tighten the housing and restore water supply.
Flush the filter for 3–5 minutes before use to remove carbon fines.
Replace every 6–12 months, depending on water quality.
Use a pre-sediment filter if raw water contains heavy turbidity to extend cartridge life.
Store cartridges in a dry environment before installation.
A soft drink manufacturer replaced traditional GAC filters with UDF carbon block cartridges. Result: 40% improvement in taste consistency and reduced replacement frequency.
Homeowners reported significant improvement in water taste and smell after installing UDF carbon block cartridges in whole-house systems.
A pharmaceutical firm achieved higher compliance with regulatory standards by switching to carbon block filtration for process water, eliminating trace chlorine.
Regular maintenance ensures optimal performance:
Monitor pressure drop; replace when flow rate decreases significantly.
Average service life: 6,000 to 20,000 gallons depending on contaminants.
Do not exceed maximum flow rate to maintain effectiveness.
Eco-Friendly: Made from renewable coconut shell carbon, reducing environmental impact.
Cost Savings: Long-lasting cartridges reduce replacement frequency.
Energy Efficiency: Low-pressure drop design reduces pumping costs.
The UDF Carbon Block Filter Cartridge is a versatile, durable, and highly effective solution for water purification across residential, commercial, and industrial settings. By combining adsorptive and mechanical filtration, it provides clear, safe, and great-tasting water while protecting downstream equipment.
With its robust specifications, customizable options, proven customer satisfaction, and compliance with safety standards, this cartridge remains one of the most trusted products in global water filtration.
